EC6

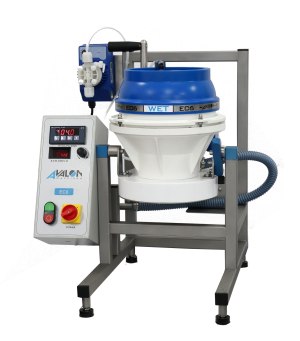

The EC-6 is a high-performance disc finishing machine, also referred to as a centrifugal disc finisher, designed to deliver rapid and efficient surface finishing results. Built with advanced technology, it ensures precise and consistent polishing, deburring, smoothing, and edge-rounding of components in significantly shorter processing times compared to traditional vibratory finishers.



Thanks to its versatility, the EC-6 can be operated in both wet and dry processing modes, accommodating a wide range of finishing media including ceramic, plastic, porcelain, stainless steel, walnut shells, and polishing compounds. This makes it a flexible solution for everything from heavy deburring and cleaning to fine polishing and mirror finishing.

ec6 1
EC6 2

ADVANTAGES

  • designed for mass finishing of small workpieces (up to 0,5 kg at one time)
  • optimized media movement and excellent processing results due to curved flow-optimized design of the working bowl
  • suitable for grinding, radiusing, cleaning, smoothing, brightening, polishing
  • processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
  • available for wet (EC6 W) or dry processing (EC6 D)
  • toroidal movement prevents workpieces from sticking to each other
  • wet processing with plastic chips, porcelain as well as stainless steel shot
  • dry smoothing and polishing of gold, silver, copper, brass using walnut shell or wooden blocks in combination with grinding and polishing pastes
  • tilted working bowl for easy unloading
  • compact desktop version of Disc Finishing Machine suitable for small and medium factories
  • reliability and durability – polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Model & Magnification

Item No. Focal Length Magnification
SP 3 14 inches 1.75x
SP 4 10 inches 2x
SP 5 8 inches 2.5x
SP 7 6 inches 2.75x
SP 10 4 inches 3.5x

ITEMS INCLUDED

  • Disc finishing machine EC6
  • Control panel with timer and frequency inverter
  • Dosing pump (for EC6 WET)/ air pump (for EC6 DRY)

Optional Accessories:

  • Manual separating unit without sieve
  • Plastic sieves (6, 7, 8, 10, 12, 14 mm)
  • Lid with filter for EC6 D
  • Compound level sensor with tank (20 liters)
  • Sound dampening lid for EC6 W

Power Supply:

  • Supply: 230 V; 50 Hz
  • Power: 0,3 kW
  • Weight: 33 kg
  • Dimensions: (W x D x H) 525x 486x 702 mm
  • Working bowl capacity: 6 l
  • Working bowl diameter: 210 mm
